Cement Mill

The output of cement ball mill is 15-20% higher than a typical ball mill, while power consumption is reduced by 10%

Specification: φ 1.83x7~ 4.6x14m

Feeding size: ≤ 20-25mm

Capacity: 6.5-135t/h

Application: cement, silicate products, new building materials, refractory, fertilizer, mineral processing of ferrous and nonferrous metals, etc.

Applicable materials: quartz stone, cement clinker, iron ore, gold ore, copper ore, construction waste, cement, glass, and so on.

Get Pricelist PDF Download (1.96M)
Fill in your email address and click on download.
If you are interested in our products, please email us at market@sinoftm.com.
  • Overview
  • Technical data
  • Send Message

Introduction to cement mill

Cement Mill is one of the important cement making equipment and key equipment for grinding crushed materials, and plays a vital role in the cement manufacturing process. Compared with ball mill with same specifications, the output of cement mill has been significantly improved. Cement ball mill is widely used for dry or wet grinding of various ores and other materials in cement, silicate products, new building materials, refractory materials, fertilizers, processing of ferrous and non-ferrous metal and glass-ceramic production industries.

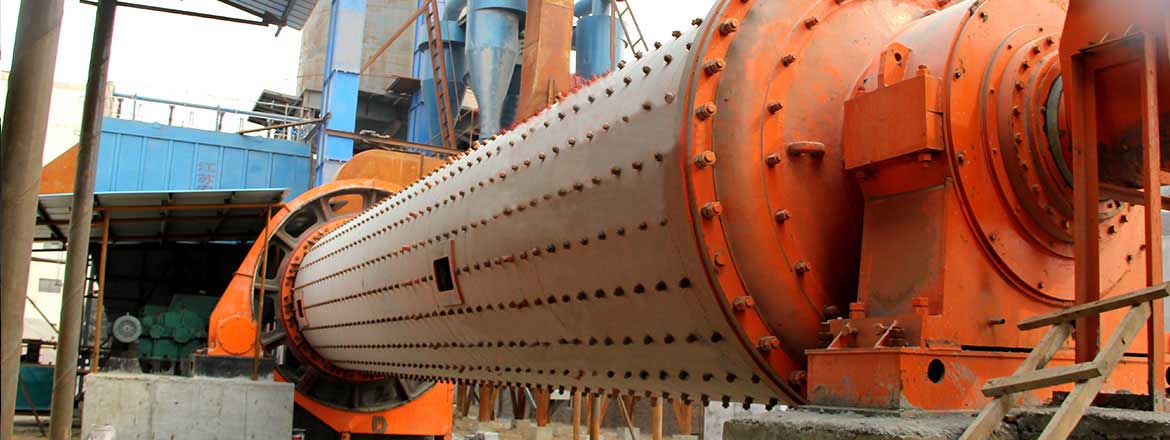

Working site of cement mill

Advantages of cement mill

1. The output of cement ball mill is 15-20% higher than a typical ball mill, while power consumption is reduced by 10%, in addition, the temperature of finished product can be reduced by 20-40 ° C

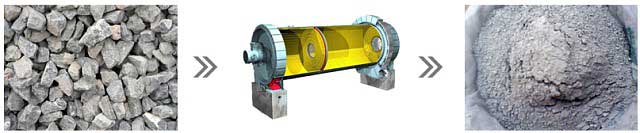

Raw materials before being grinded and after being grinded by cement mill

2. Fote cement grinding mill greatly simplifies the transmission, so it' s easier for repair and maintenance of reducer and gear, reducing downtime and labor intensity of maintenance operations.

3. The bearing of our cement grinding machine has better load capacity and self adjusting, supporting the cement mill run more reliably.

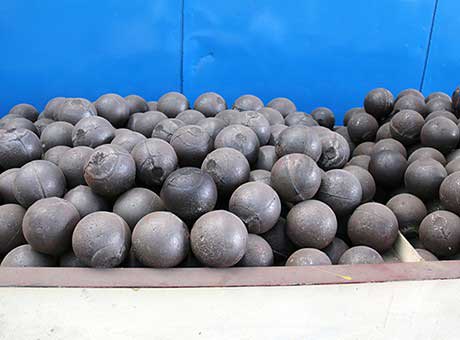

Steel balls in cement mill

4. Fote cement ball mill enjoys better dust removal performance and less pollution, and the renewal of technology and research and development prolongs the service life of wearing parts.

Fote Machinery is a professional cement mill manufacturer, and by grinding experiment and calculation, Fote Machinery can select and design appropriate specifications according to user-supplied samples, yield and size.
Welcome to leave message or email us for more details and price list.

cement mill

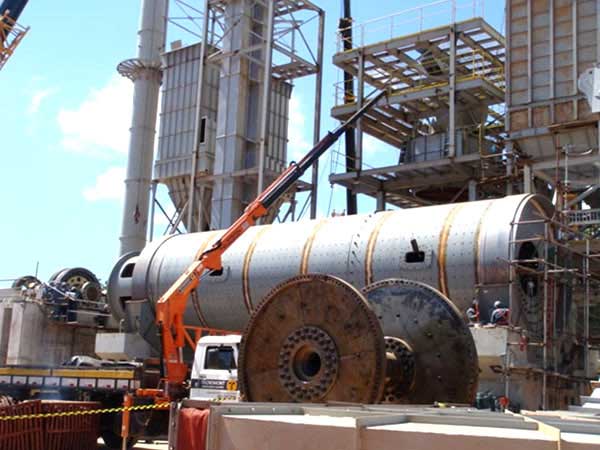

Installation site of Fote cement mill

Parameters type

Product specification
(m)
Milling form Transmission form Gear box Motor power
(kw)
Production capacity
(t/h)
Total weight
(t)
Model Speed reduction ratio
Φ1.83×7 Open flow Brim ZD60 4.5 245 6.5-8 43.8
Φ2.2×7.5 Open flow Brim ZD70 5 380 8-10 64.8
Φ2.2×11 Open flow Brim D110 35.5 630 12-13 104.6
Φ2.2×13 Open flow Brim D110 35.5 630 16-18 114
Φ2.4×13 Open flow Brim D110 35.5 800 20-23 130.6
Φ2.6×13 Open flow Brim MFY100 19.5 1000 28-32 158
Φ3×9 Circle flow Brim D125 41.2 1000 28-36.5 167
Φ3×11 Circle flow Brim D140 42.8 1250 36-47 180
Φ3.2×13 Open flow Brim D140 36.5 1600 45-50 225
Φ3.5×13 Circle flow Brim JDX1000 5.84 2000 60-65 275
Φ3.8×13 Open flow Central shaft MFY250 16.5 2500 60-62 320
Φ4.2×13 Open flow Central shaft JQS3550 15.6 3530 85-87 380
Φ4.6×14 Circle flow Central shaft JSI160-C 14.6 4200 120-135 485
