Hydraulic Cone Crusher

Complete hydraulic operation, easy to use / Long service life, high crushing efficiency.

Processing capacity: 12 - 1000 t / h

Feeding size: 35 - 300 mm

Cone diameter: 600-2200 mm

Applied materials: Granite, basalt, quartz stone, iron ore, pebbles, green stone, copper ore and limestone.

Get Pricelist PDF Download (1.39M)
Fill in your email address and click on download.
If you are interested in our products, please email us at market@sinoftm.com.
  • Overview
  • Technical data
  • Send Message

Introduction to hydraulic cone crusher:

The Hydraulic Cone Crusher is aoptimization design of single-cylinder hydraulic cone crusher and PYF cone crusher. It not only improves the production capacity and crushing efficiency, also enlarges the application range. From limestone to basalt, from stone production to various ores crushing, it can provide unparalleled crushing performance.

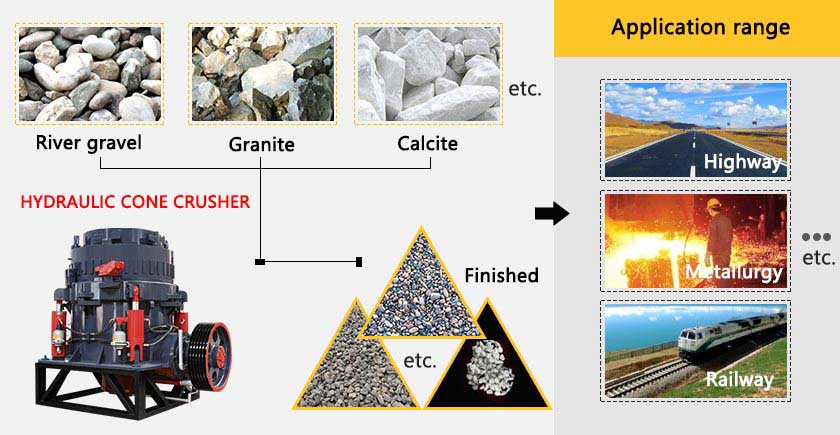

Application field of hydraulic cone crusher:

The crushing cavity in the hydraulic cone crusher is divided into four types according to the crushing size requirement, which are medium crushing,medium and fine crushing, fine crushing, superfine crushing. The hydraulic cone crusher is applicable to crushing stone materials with Protodikonov's Hardness f=5-16, such as iron ore, nonferrous metal ore, granite, limestone, quartzite, Sandstone, cobble and other oresand rocks. It is widely used in the industry of metal mine, metallurgy, chemical, construction, cement and sand, etc.

Hydraulic Cone Crusher materials

Advantages of hydraulic cone crusher:

1.Strong crushing ability; high production efficiency; high productivity
2.Little consumption of vulnerable part; reliable operation; low operation costs.
3.Goodparticleshape and high quality of finished product.
4.Multiple crushing cavity type; flexible application; strong adaptability.

Parameters type

Model Cavity
Diameter of
large end of
crushing cone (mm)

Adjusting Range of
Discharge  Opening (mm)

Feed Opening Size
of  the Opening
Edge when Recommending
Min. Discharging Gate Opening (mm)

Max.feeding size
(mm)

Processing capacity
(t/h)

Main motor power
(kw)

Machine Weight
(t)
FTMGYS 300 C1 910 13~38 175 150 81~180 6P  90 10
C2 9~22 102 85 60~180
F1 3~16 76 65 36~145
F2 3~13 41 35 36~130
FTMGYS 400 C1 1200 19~51 241 205 207~400 6P  200 20
C2 16~38 210 178 162~350
C3 13~31 137 115 126~310
F1 8~25 105 89 109~230
F2 6~16 89 76 82~230
F3 3~16 64 54 40~230
FTMGYS 500 C1 1600 25~64 269 228 280~650 6P  280 40
C2 22~51 241 205 258~450
C3 16~38 209 178 180~410
F1 10~25 133 113 162~355
F2 6~19 89 76 136~330
F3 5~13 70 60 90~300
