Raymond Mill
Raymond Mill

Raymond Mill

High Efficiency, Energy-saving, Even Output

Max. Feeding Size: 15-40mm

Capacity:1-200tph

Processing Materials: barite, calcite, potassium feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate ore and thermal-insulation material, etc.

  • Quartz
  • Steatite
  • Clay Minerals
  • Bentonite
  • Coal Fluorite
Get Pricelist
If you are interested in our products, please email us at market@sinoftm.com.

On the basis of domestic mills, Fote raymond mill is produced. The raymond roller mill enjoys the features of high working efficiency, low energy consumption, small floor space and small cost. Fote raymond mill is made up of dynamo, analyzer, air blower, cyclone separator and wind pipe, etc. As to the dynamo, it is composed of rack, inlet volute, shovel blade, grinder roll, grinding ring and housing.

Application Range

Raymond roller mill can powder more than 280 non-explosive and non-flammable materials with Moh’s hardness smaller than 9.3 and humidity smaller than 6%, like barite, calcite, potassium feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate ore and thermal-insulation material, etc.

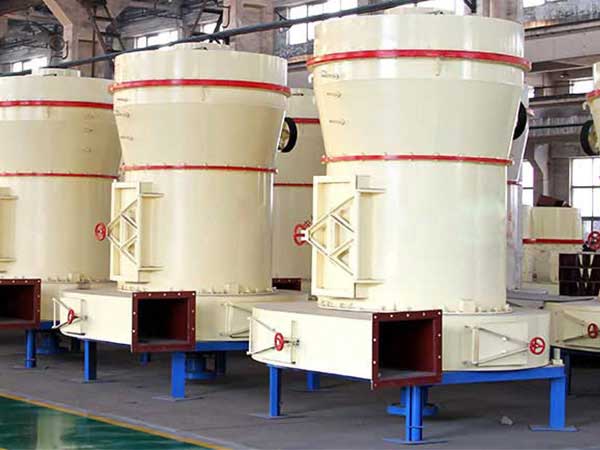

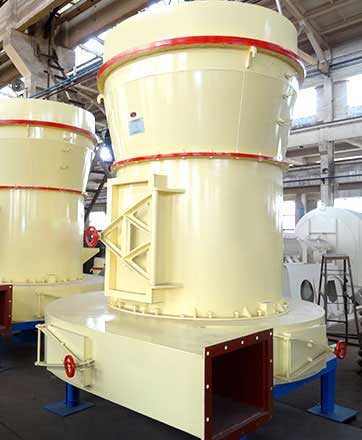

raymond roller mill

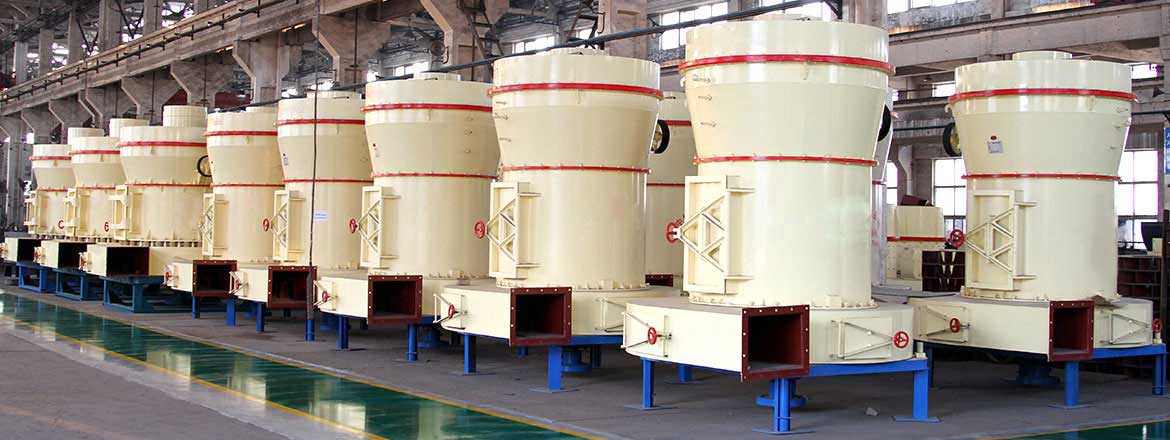

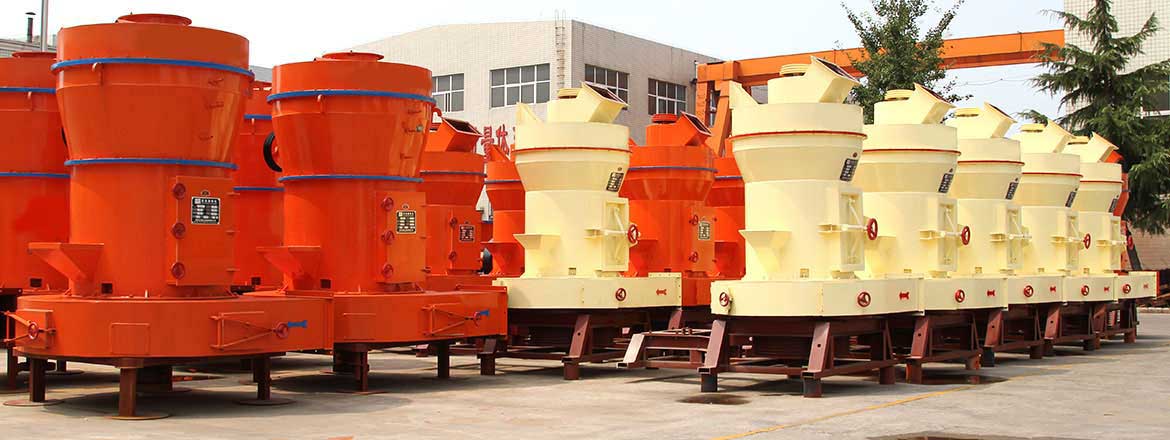

Raymond Mills for shipping

Fote raymond mill is random to adjust the size of finished products from 80 to 325 mesh. For a part of finished powders, its size can even reach to 600 mesh.

Raw materials before being ground and after being ground by Raymond Mill

How the raymond mill works?

Under the Fote raymond mill, there is a dynamo, which can bring the roller and disk to revolve and mill raw materials. Wind, coming from air intake, blows up the finished powders to separator and fine powders are separated out. Then, fine powders are collected and discharged out with wind.

Remarkable advantages of limestone grinding mill

1: Small floor space, easy transportation, installation, operation and maintenance

2: Automatic-control with PLC, low failure rate, zero pollution and noise

3: Random adjustment for size of finished powders from 80 mesh to 600 mesh, wide application range

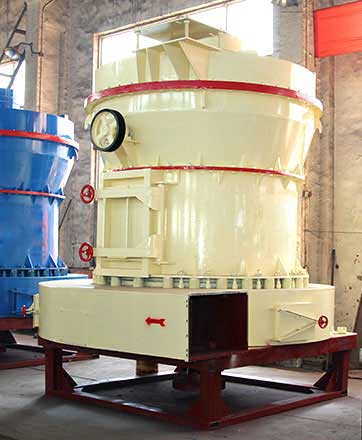

limestone grinding mill

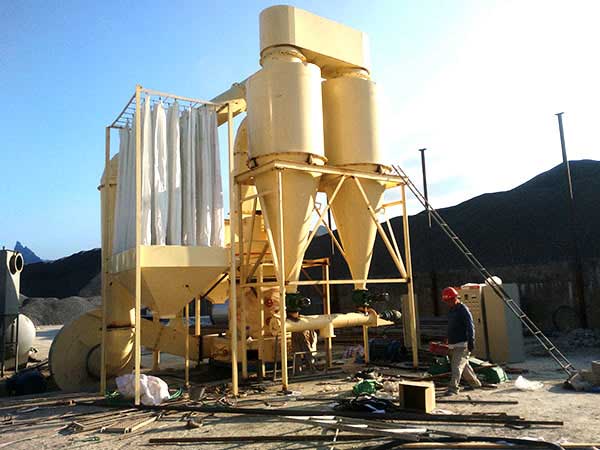

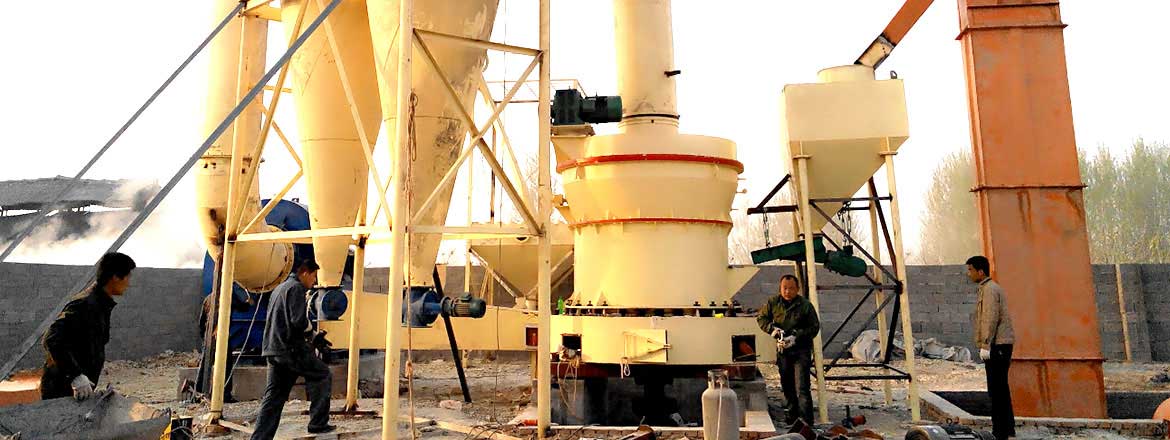

Installation site of Fote raymond mill

Fote is a professional supplier of limestone grinding mill and gypsum grinding mill, with production experience for more than 30 years and products being exported to more than 30 countries or areas. The price of raymond mill is reasonable.
Hope to see your early message on website or email!

Technical Parameters

Model 4525 4119
Feeding Size(mm) ≤30 ≤25
Output Size(mm) 0.173-0.044 0.173-0.044
Shift Output of Different Material Fineness(t) 16-176 8-78
Rotation Speed of Central Shaft(r/min) 82 105
Ring Diameter(mm) 1770 1400
Roller Diameter(mm) 450 410
Roller Height(mm) 250 190
Main Motor(kw) Y315M-4-132 Y280S-4-75
Fan Motor Y315M-4-132 Y280S-4-75
Analyzer Motor YCT250-4A-18.5 YCT200-4B-7.5
