Superfine Grinding Mill

easy-wearing parts inside have 4 times longer service life than that of raymond mill

Feeding size: ≤20mm

Discharging size: 425-3,250 mesh

Working capacity: 30-800kg/h

Raw material: non-flammable and non-explosive materials like quartz, feldspar, porcelain clay, bentonite, calcite, talc, barite, fluorite, clay, white mud and gypsum, etc.

Get Pricelist
If you are interested in our products, please email us at market@sinoftm.com.
  • Overview
  • Technical data
  • Send Message

General introduction to superfine grinding mill

On the basis of Raymond mill, Fote produces the superfine grinding mill, which is mainly used for powdering non-flammable and non-explosive materials with Moh's hardness smaller than 6 and humidity smaller than 6% like quartz, feldspar, porcelain clay, bentonite, calcite, talc, barite, fluorite, clay, white mud and gypsum, etc. Size of finished powders is generally from 425 mesh (33 micrometer) to 3,250 mesh(3 micrometer). The superfine grinding mill is an advanced, energy-saving and high-efficient powder maker.

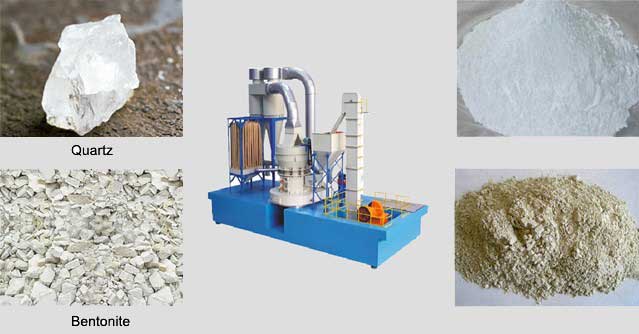

Raw materials before and after being ground, and the fineness is of up to 1,400-3,000 mesh

Working features of superfine grinding mill

Superfine grinding mill has rapid-revolving plates inside, which make raw materials hit with each other or hit by the fixed wear-resistant plates. Gradually, raw materials are powdered. The superfine grinding mill is suitable for brittle materials with medium hardness. Compared with other mills, the superfine grinding mill is more excellent in aspects like easy adjustment toward size of finished products, wide application ranges, small floor space and continuous, enclosed crushing.

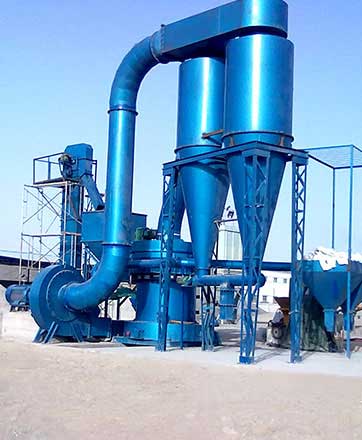

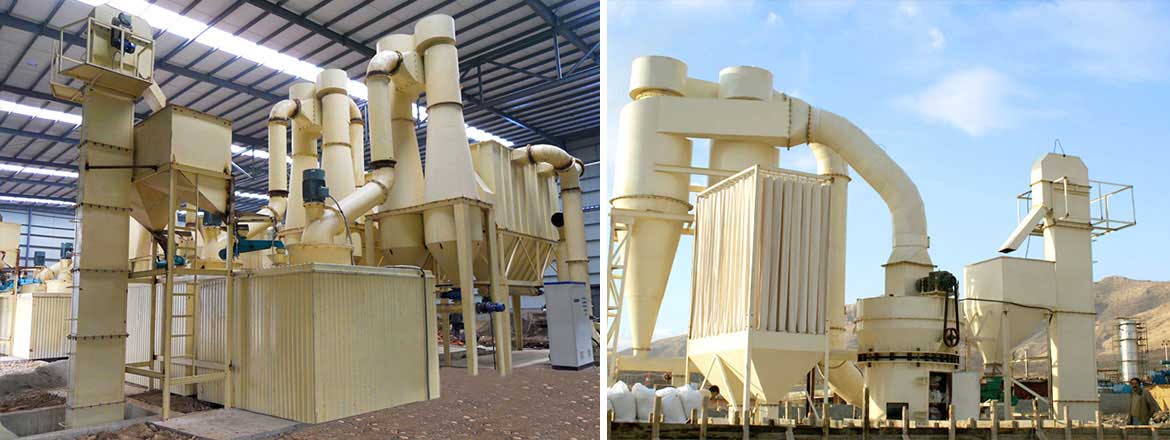

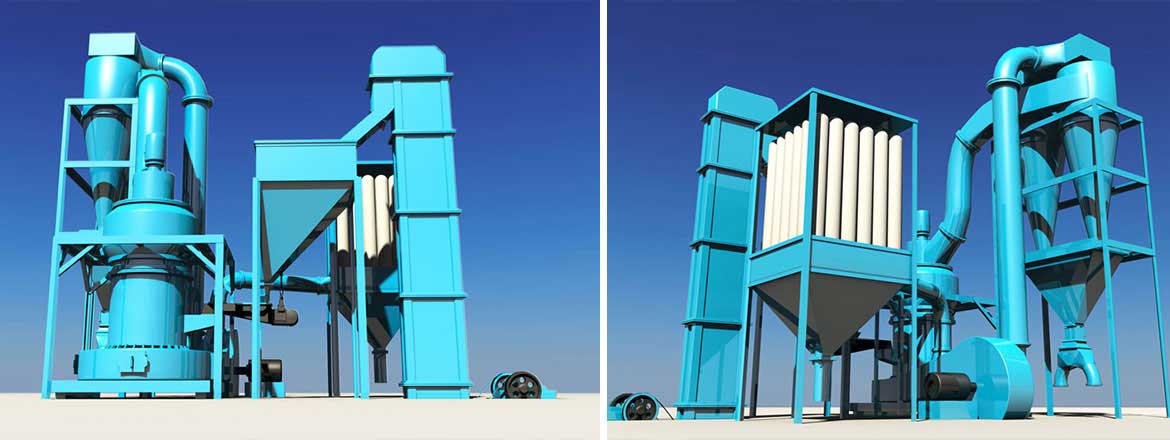

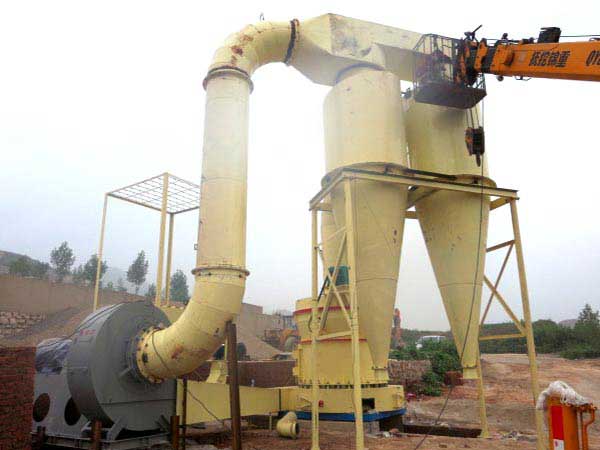

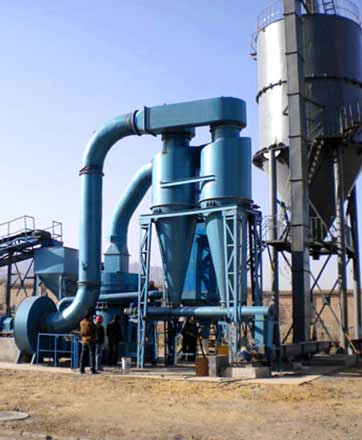

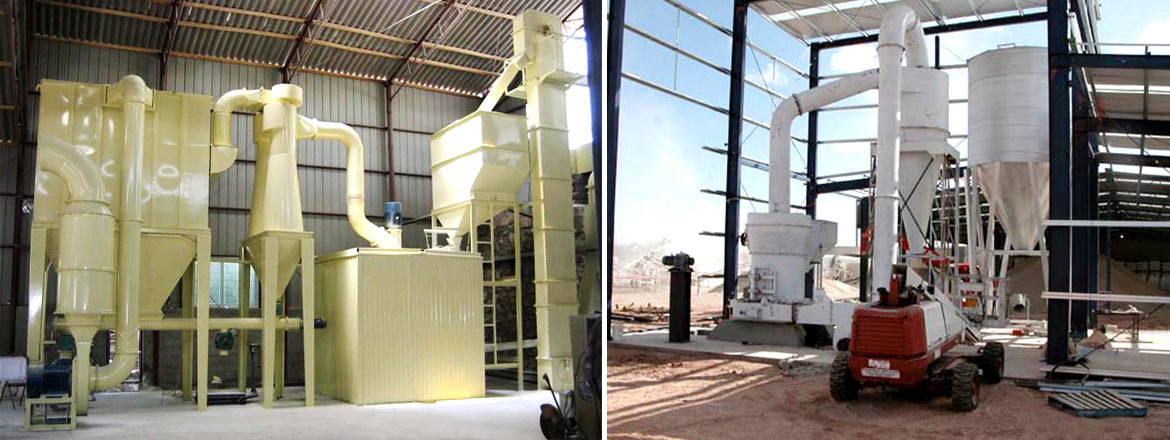

 superfine grinding mill

Parameters type

Type HGM100 HGM120 HGM130 HGM160 HGM175
Feeding
size (mm)
<20 <20 <25 <30 <35
Size of finished
product (mm)
0.25-0.015 0.25-0.015 0.25-0.015 0.25-0.015 0.25-0.015
Shift output
of different
material
fineness (t/h)
0.8-6 1.2-8 1.8-12 2.8-20 3.5-25
Rotate speed of
central shaft (r/min)
140 140 105 82 75
Diameter of
pulverizing ring (mm)
1075×200 1280×240 1400×240 1770×280 1900×300
Diameter of pulverizing
roller (mm)
320×200 370×240 410×240 450×280 500×300
Main
Motor (kw)
37 55 75 132 160
Fan
Motor (kw)
45 55 75 132 160
Analyzer
motor (kw)
11 15 18.5 22 30
