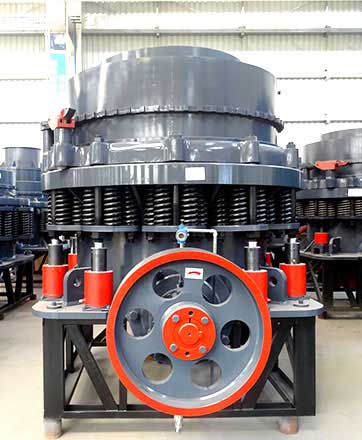

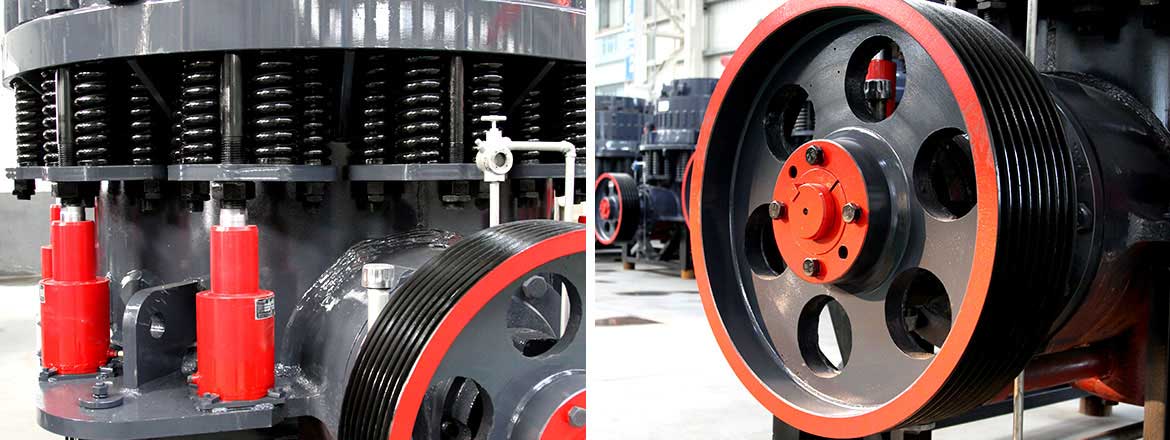

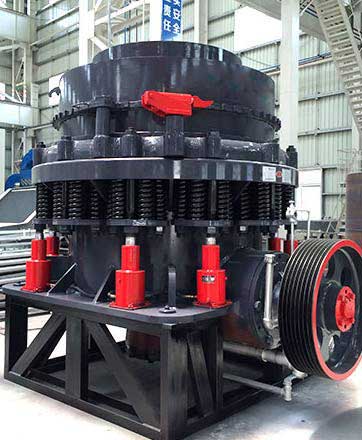

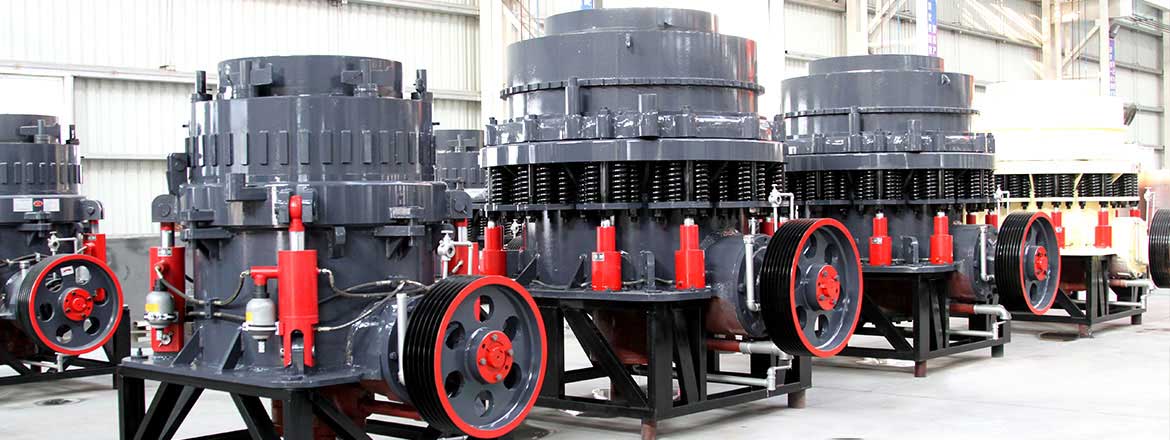

Compound Cone Crusher

Coarse, medium, fine, superfine crushing cavity / Suitable for crushing materials with medium hardness or above / High efficiency

Processing capacity:45 - 1814 t/h

Feeding size: ≤ 314 mm

Applied materials: River pebbles, granite, dolomite, basalt, iron ore, limestone, quartz stone, diabase, iron ore, gold mine, copper mine

Get Pricelist
If you are interested in our products, please email us at market@sinoftm.com.
  • Overview
  • Technical data
  • Send Message

Introduction to compound cone crusher:


The Compound cone crusher(Symons cone crusher) is suitable for crushing materials with medium hardness or above. Each model has four types of crushing cavity type including coarse, medium, fine, superfine crushing cavity.
Compound cone crusher is widely used in the industrial of metallurgy, building materials, road paving, chemical, silicate. and it is suitable for various ores and rocks with medium and above hardness.

Compound Cone Crusher materials

Advantages of compound cone crusher:

1.Large crushing ratio; high efficiency; large treatment capacity; wide application range.
2.High Capacity; more uniformparticle size.
3.Low failure rate; less downtime; sturdy and durable crusher; reliable operation.
4.High automation degree; convenient adjustment; low operating cost.

Parameters type

Type Model Diameter
of large
end of
crushing
 cone(mm)
Adjusting
 Range of
Discharge
Opening(mm)
Feed
opening
size of the
open edge
when
recommending
 the min.
Discharge
opening
(mm)
Max.feeding
size(mm)
Processing
capacity
(t/h)
Main
motor
 power
(kw)
Machine
weight
(kg)
PSG 900 0910 914 (3′) 9-22 102 85 45-91 6P   75 9980
0917 13-38 175 150 59-163
0904 3-13 41 35 27-90
0906 3-16 76 65 27-100
PSG 1300 1313 1295 (4¼′) 13-31 137 115 109-181 6P   160 22460
1321 16-38 210 178 132-253
1324 19-51 241 205 172-349
1306 3-16 64 54 36-163
1308 6-16 89 76 82-163
1310 8-25 105 89 109-227
PSG 1600 1620 1676 (5½′) 16-38 209 178 181-327 6P   250 43270
1624 22-51 241 205 258-417
1626 25-64 269 228 299-635
1607 5-13 70 60 90-209
1608 6-19 89 76 136-281
1613 10-25 133 113 190-336
