Hammer Crusher

Good appearance, excellent sealing, no dust pollution or leakage,few easy-wearing parts

Feeding size: ≤350mm

Working capacity: 5-150m³/h

Application range: aggregate storage, coal mining, sand making, dry-mixed mortar, power plant desulfurization and silica sand, etc

Suitable materials: all kinds of ore with compressive strength less than 100MPa and water content smaller than 15% like coal.

Get Pricelist PDF Download (2.25M)
Fill in your email address and click on download.
If you are interested in our products, please email us at market@sinoftm.com.
  • Overview
  • Technical data
  • Send Message

General introduction to hammer crusher

Hammer crusher, also called hammer mill crusher, is one of the major tertiary crushers for brittle materials in metallurgy, building material, chemical engineering and hydropower like limestone or coal, etc. Fote hammer coal crusher enjoys the features of large crushing ratio, high working capacity and even particle production.

Crushing site of heavy hammer crusher (large hammer crusher)

Hammer mill crusher is made up of rack, rotor, hammer head, impact plate and sieve plate, etc. Fote can design the most suitable hammer crusher for customers according to your demands.

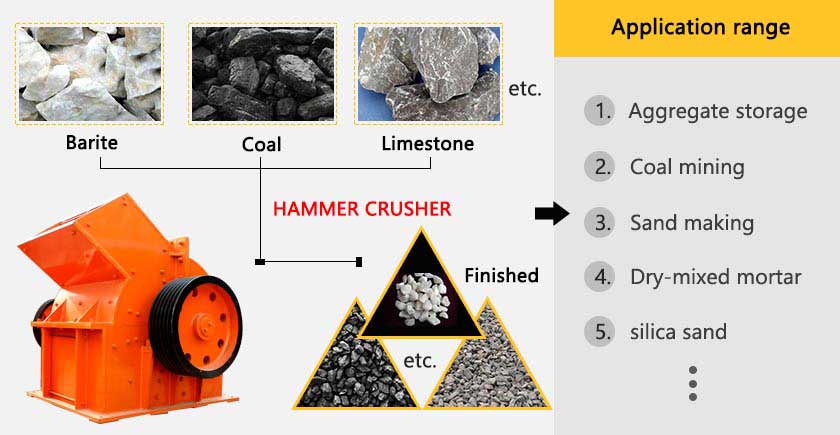

Process

Stone before being crushed and after being crushed by Fote hammer crusher

Remarkable features of Fote hammer crusher

1: good appearance, excellent sealing, no dust pollution or leakage
2: random adjustment toward the discharging size, just by changing sieve distance.
3: few easy-wearing parts, convenient maintenance

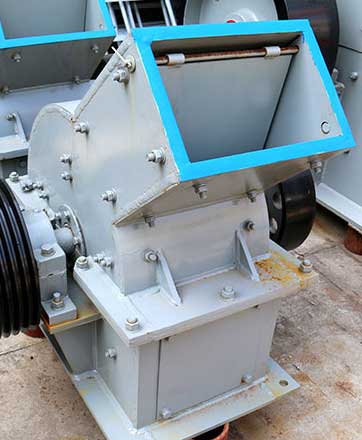

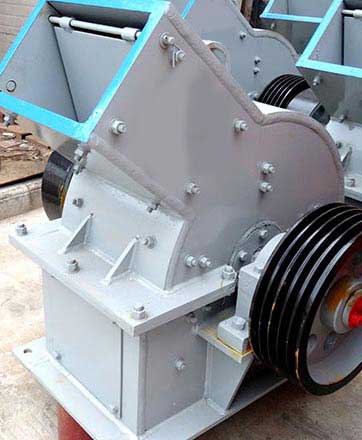

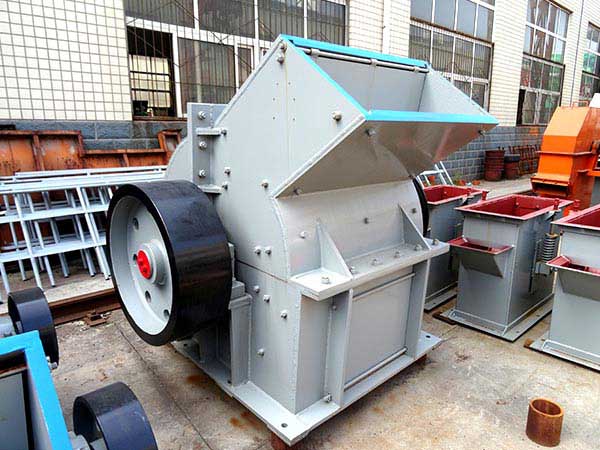

 hammer crusher

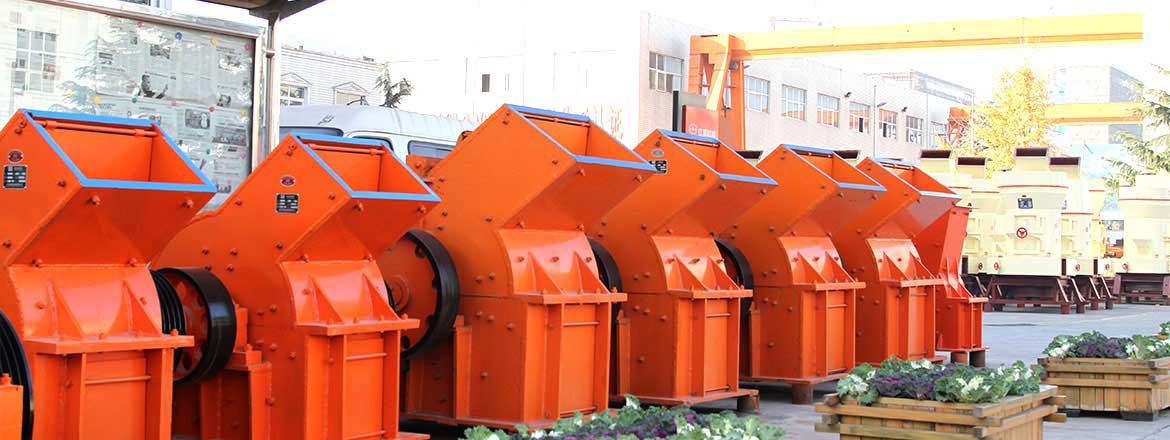

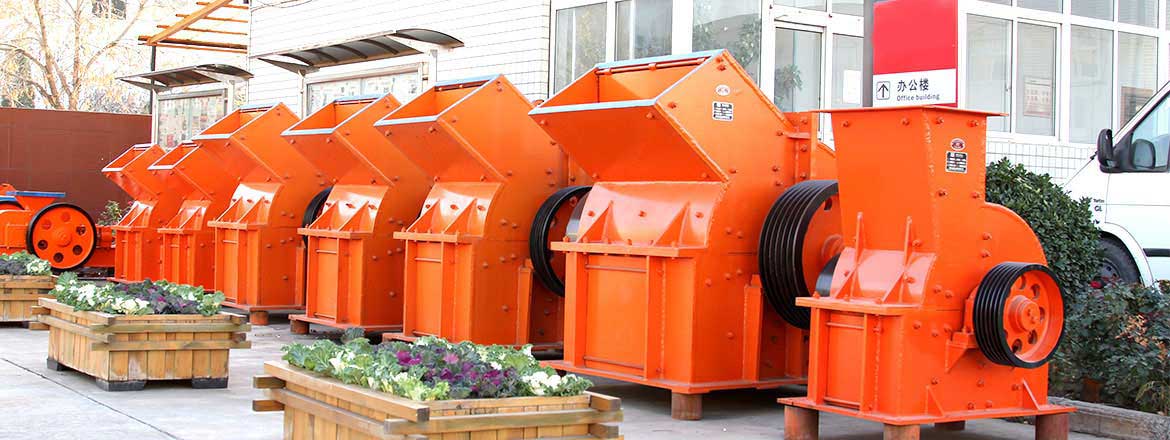

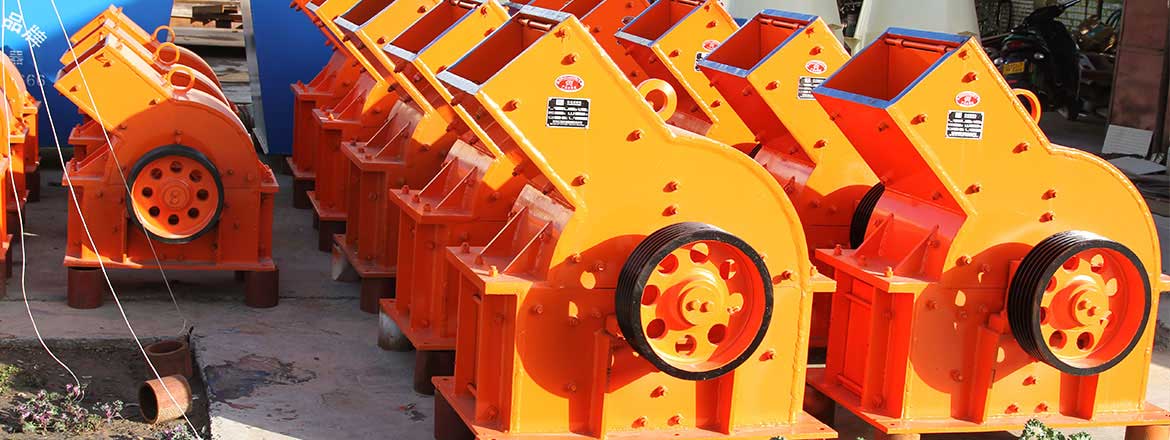

Hammer crusher with general size

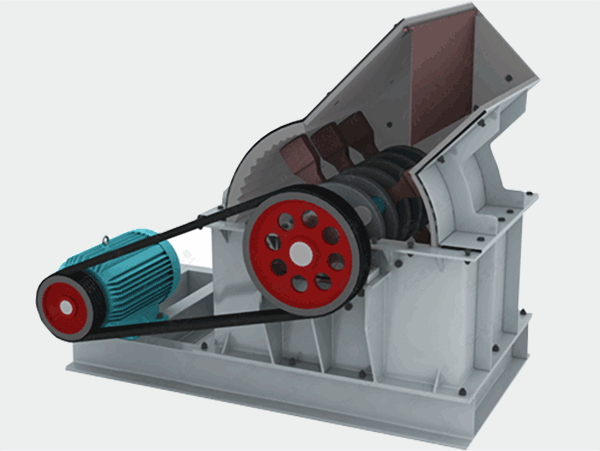

How Fote hammer crusher works?

Dynamo drives the rotor to rapidly revolve in crushing cavity. Raw materials are fed from upper mouth and crushed by the high-speed rotors. Under the rotor, there are sieve plates. For crushed materials with size smaller than sieve hole, they are discharged out. While, for those larger ones, they still remain inside and are hit continuously by hammers. They will be discharged out once becoming smaller.

Heavy hammer crusher machine

Feeding size:  ≤600-≤1200mm

Working capacity:  100-800t/h

Application range: aggregate storage, coal mining, sand making, dry-mixed mortar, power plant desulfurization and silica sand, etc

Appliable materials: copper ore, quartz, limestone, coal, coal gangue, River pebbles.

Heavy hammer crusher machine

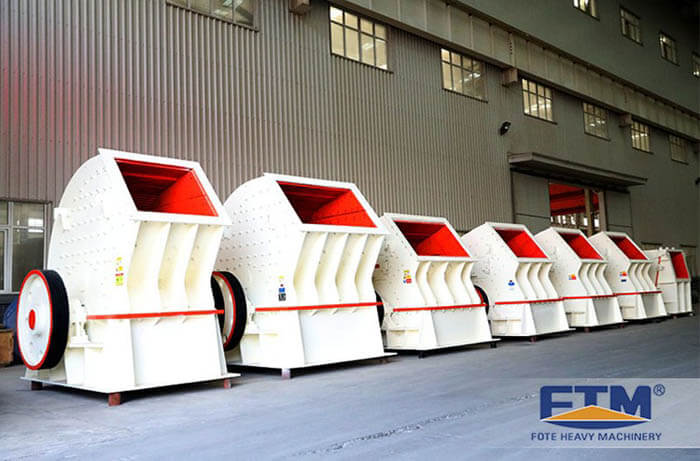

Large heavy hammer crusher machine

Heavy hammer crusher machine, regarded as the relatively advanced crusher in field, enjoys the features of once shaping, high working efficiency, great energy conservation and environmental protection. Since Fote heavy hammer crusher machine adopts the principle of impact crushing, it can crush those relatively hard materials. The output is very high.

As a professional supplier of hammer crusher, Fote has made the production for more than 30 years. With reasonable price, hammer crusher is quite popular among the world. Welcome you to come for site visit!

Parameters type

Specification Capacity(m³/h)
Motor Power
(kw)
PCΦ400×300 5-10 4P 11KW
PCΦ600×400 10-22 4P 22KW
PCΦ800×600 18-40 6P 55KW
PCΦ1000×800 25-50 8P 75KW
PCΦ1000×1000 30-55 8P 90KW
