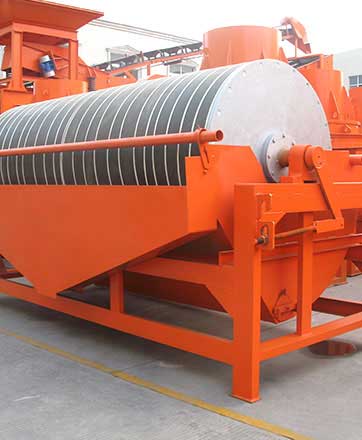

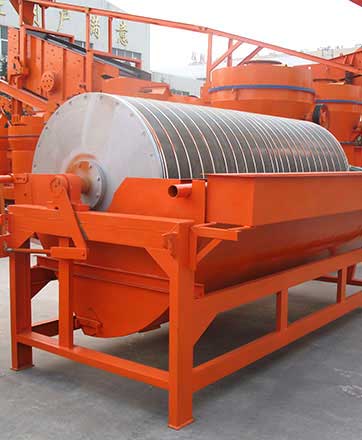

Magnetic Separator

Different ores have different magnetic coefficients. Magnetic separator is just the machine that uses magnetic and mechanical power to separate the ores from mixers.

Feeding size: 0-3mm

Processing capacity: 10-280t/h

Application range: ore separating plant, building material, resource recycling, etc.

Raw material: ores with size smaller than 3mm like magnetite, pyrrhotite, calcined ore, ilmenite, coal and non-metallic ore.

Get Pricelist PDF Download (2.57M)
Fill in your email address and click on download.
If you are interested in our products, please email us at market@sinoftm.com.
  • Overview
  • Technical data
  • Send Message

General introduction to magnetic separator

Different ores have different magnetic coefficients. Magnetic separator is just the machine that uses magnetic and mechanical power to separate the ores from mixers. According to the working way, magnetic separator is classified into dry magnetic separator and wet magnetic separator.

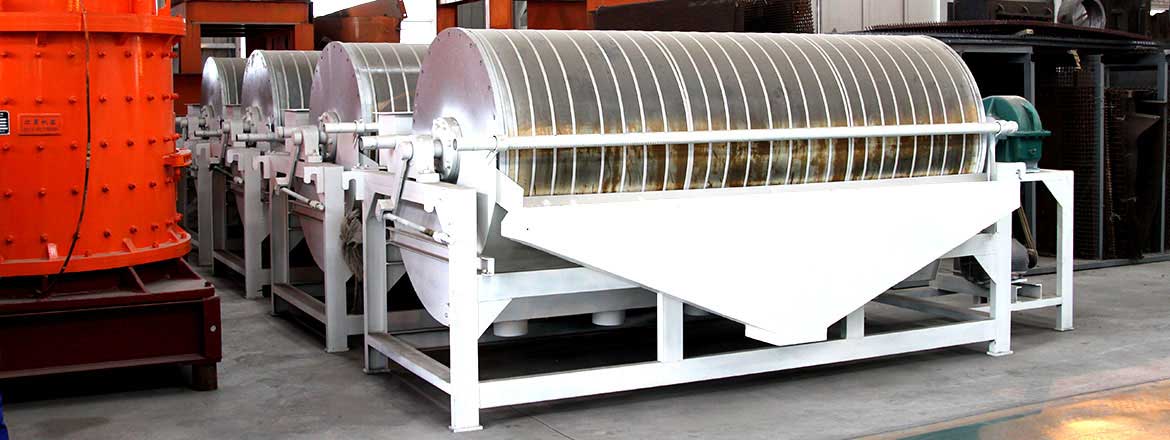

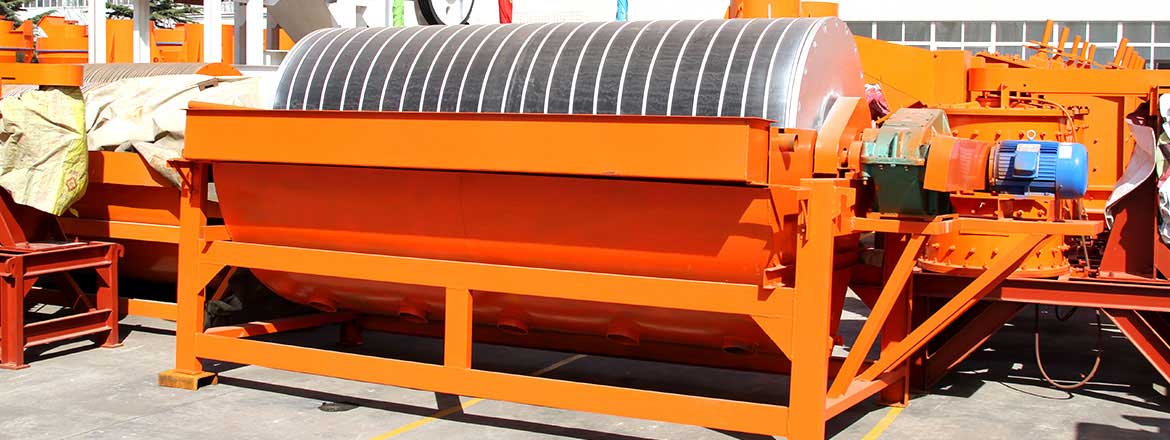

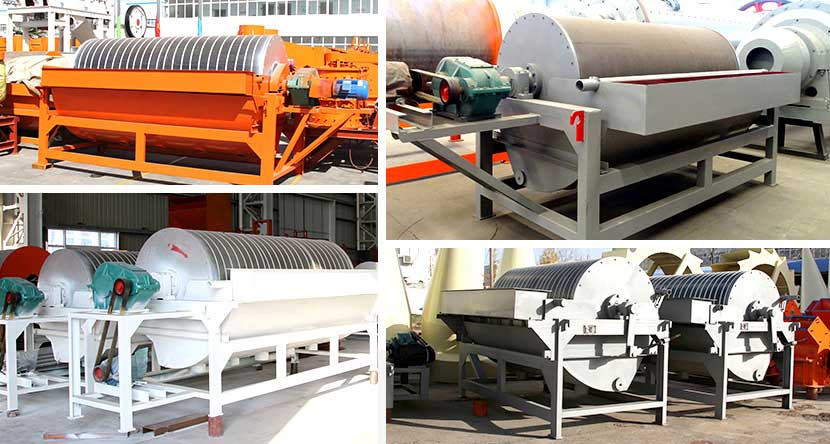

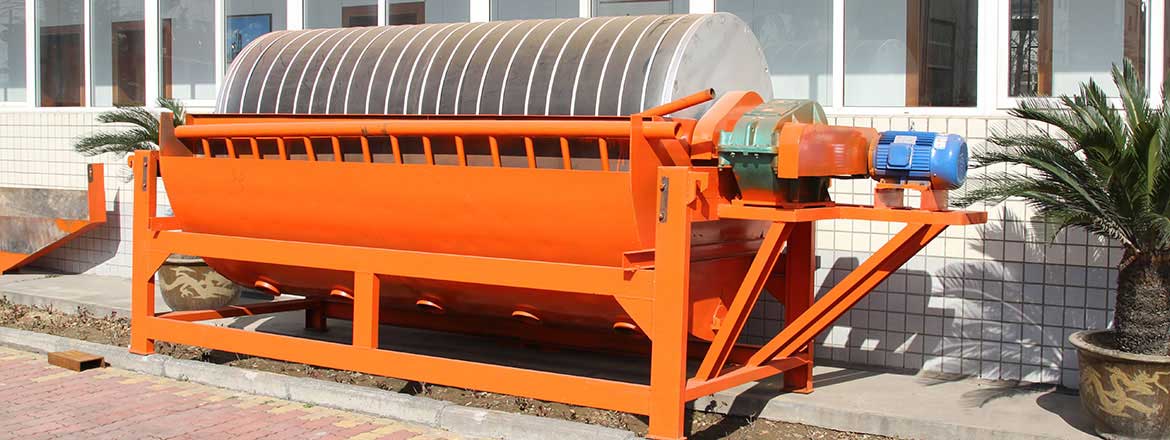

Working site of magnetic separator

Except for separating the ores with size smaller than 3mm like magnetite, pyrrhotite, calcined ore, ilmenite, magnetic drum separator is also capable in the dedusting work for coal, non-metallic ores and building materials.
Fote magnetic separator enjoys the features of simple structure, strong working capacity, easy operation and convenient maintenance, etc.

Magnetic Separator

Application ranges of magnetic separator

1. Coarsely separating the primarily or secondarily-crushed lean iron ores and improving their grades
2. Purifying the fine clay like Kaolin and bauxite by removing the Fe2O3\TiO2
3. Decreasing the Fe2O3 content in quartz sand, feldspar and barite
4. Lowering the copper content in molybdenum concentrate
5. Dedusting and desulfurizing the coal
6. Improving the grade of apatite
7. Concentrating the rare-earth, sea beach placer and other useful ores
8. Deironing the coal, foundry sand, refractory material and ceramics

Usage of magnetic drum separator

There are many kinds of materials suitable for , iron ore magnetic separator, like magnetite, limonite, hematite, barringerite, ilmenite, wolframite, manganese ore, manganese carbonate ore, metallurgical manganese ore, oxidate manganese ore, kaolin and rare-earth, etc. The magnetic drum separator has its own magnetic field and minerals are separated inside by magnetic and mechanical power. Different ores have different magnetism and motion tracks, so we can get several kinds of ores just by using one magnetic separator.

Parameters type

Model Shell diameter
(mm)
Shell lenght
(mm)
Shell rotation
speed(r/min)
Feeding size
(mm)
Processing capacoty
(t/h)
Power(kw)
CTB6012 600 1200 <35 2-0 10-20 1.5
CTB6018 600 1800 <35 2-0 15-30 2.2
CTB7518 750 1800 <35 2-0 20-45 2.2
CTB9018 900 1800 <35 3-0 40-60 3
CTB9021 900 2100 <35 3-0 45-60 3
CTB9024 900 2400 <28 3-0 45-70 4
CTB1018 1050 1800 <20 3-0 50-75 5.5
CTB1021 1050 2100 <20 3-0 50-100 5.5
CTB1024 1050 2400 <20 3-0 60-120 5.5
CTB1218 1200 1800 <18 3-0 80-140 5.5
CTB1224 1200 2400 <18 3-0 85-180 7.5
CTB1230 1200 3000 <18 3-0 100-180 7.5
CTB1530 1500 3000 <14 3-0 170-280 11
