Shaking Table

Shaking table is a kind of ore separating machines, mainly for separating ores like tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, titanium and coal, etc.

Feeding size: 0.15-2mm

Processing capacity: 10-60t/h

Application range: ore separating plant and others

Raw materials: tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, titanium and coal, etc

Get Pricelist
If you are interested in our products, please email us at market@sinoftm.com.

Shaking table is a kind of ore separating machines, mainly for separating ores like tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, titanium and coal, etc.

Remarkable features of gold shaking table

1: high concentration ratio, high separating efficiency, easy operation
2: capable of separating concentrates from tailings for only once
3: low energy consumption, no drug used
4: high cost performance, rapid capital return

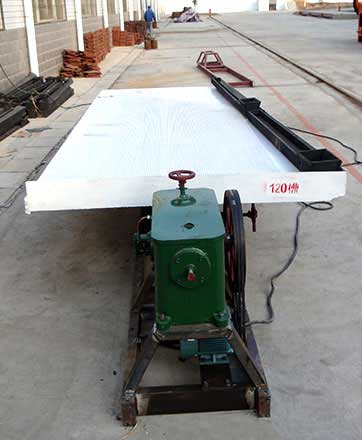

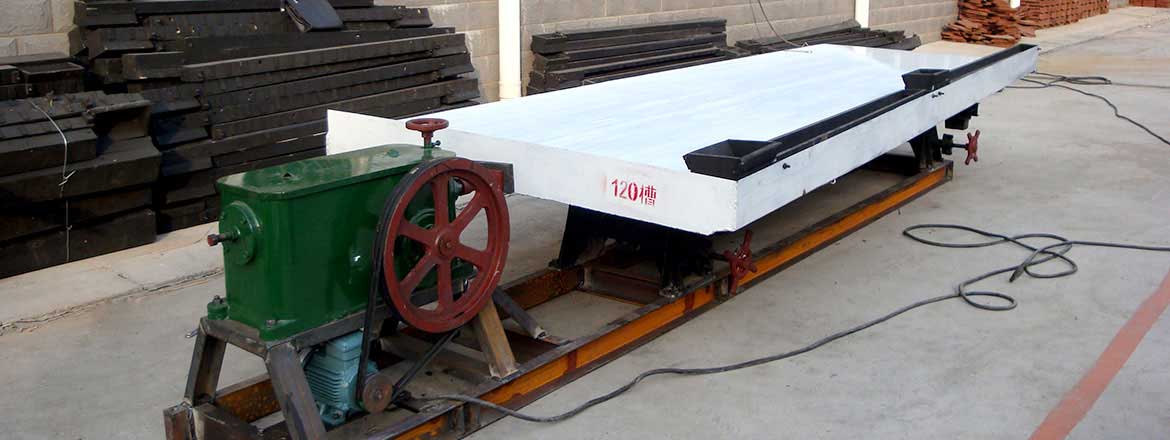

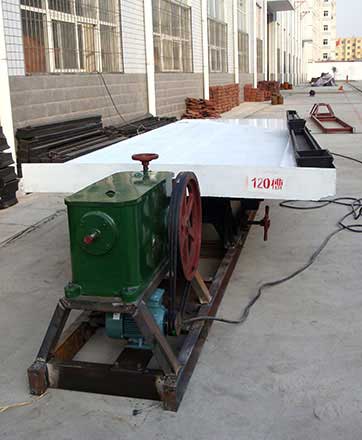

gold shaking table

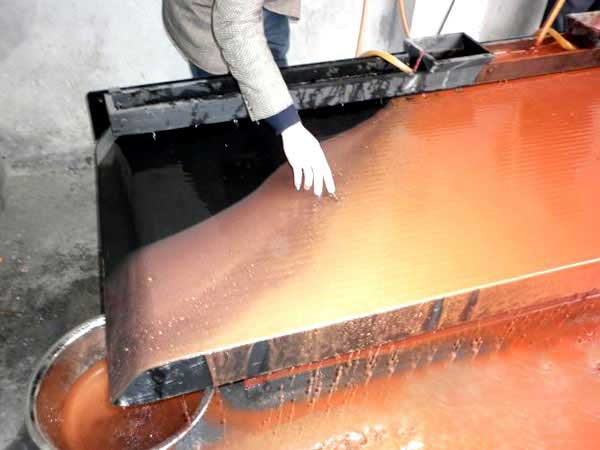

Gold ore beneficiation site with shaking table

Working principle of gold shaker table

Shaking table is actually an inclined bed or plane. Under the repeated movement of mechanical plane and water flow, ore particles are gradually loosened and finally separated out according to the density.

Technical Parameters

Name Grit
concentrator
 table
Fine sand
concentrator
 table
Sludge
concentrator
 table
Bed surface
Dimensions
Length
(mm)
4450 4450 4450
Driving
part Width
(mm)
1855 1855 1855
Concentrate
part Width
(mm)
1546 1546 1546
Max.feeding
size(mm)
2 0.5 0.15
Feeding
amount
(t/d)
30-60 10-20 15-25
Feeding
thickness
(%)
25-30 20-25 15-25
Stroke
(mm)
16-22 11-16 8-16
Frequency
(f)
45-48 48-53 50-57
Bed surface
Water quantity
(t/d)
80-150 30-60 10-17
Bed surface
Horizontal
obliquity(°)
2.5-4.5 1.5-3.5 1-2
Bed surface
Portrait
obliquity(%)
1.4 0.92 ----
Table board
corner(°)
32-42 40 42
Concentrating
area(㎡)
7.6 7.6 7.6
Bed surface
Length ratio
2.6 2.6 2.6
Shape of
side-bed
surface
Rectangle Zigzag Triangle
Motor
power(kw)
1.1 1.1 1.1
Transmission
device
Eccentricity Linkage
