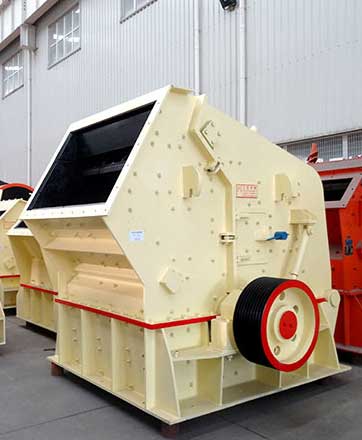

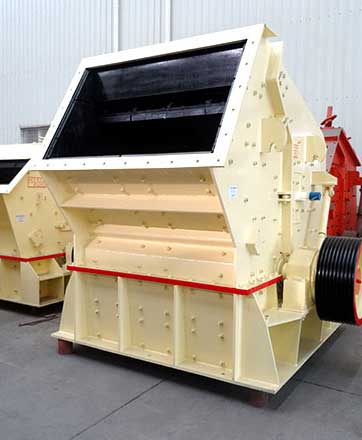

Impact Crusher

1.5 times or even 2 times larger crushing cavity than that of other crushers, large feeding mouth

feeding size: 300-700mm

Processing capacity:30-550t/h

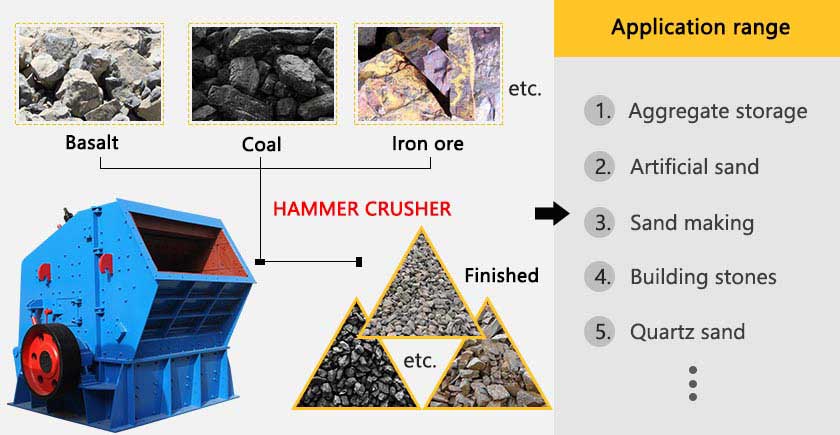

Raw material: river gravel, granite, basalt, iron ore, limestone, quartz stone, coal gangue, dolomite, feldspar, calcite, talc, barite and building wastes, etc

Application range: aggregate storage, artificial sand, building stones, mining, dry-mixed mortar, power plant desulfurization and quartz sand, etc.

Get Pricelist
If you are interested in our products, please email us at market@sinoftm.com.

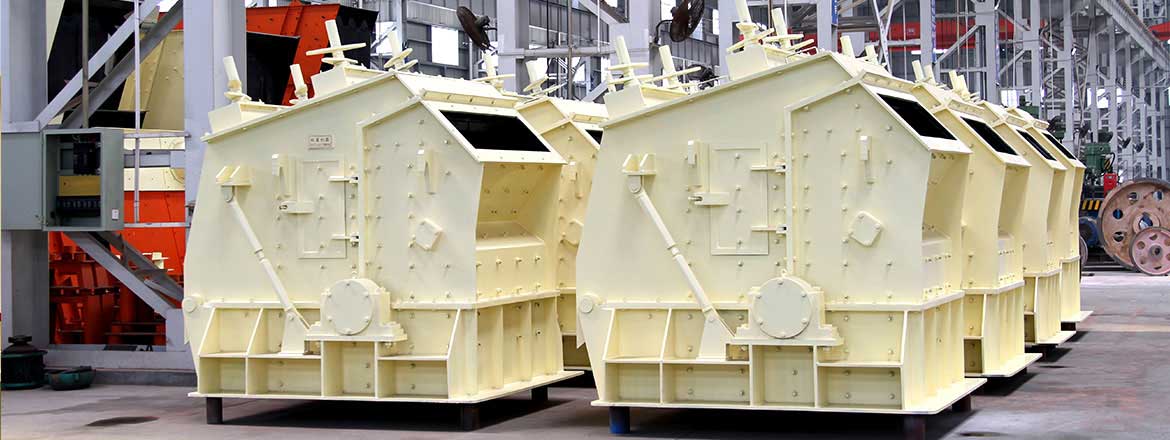

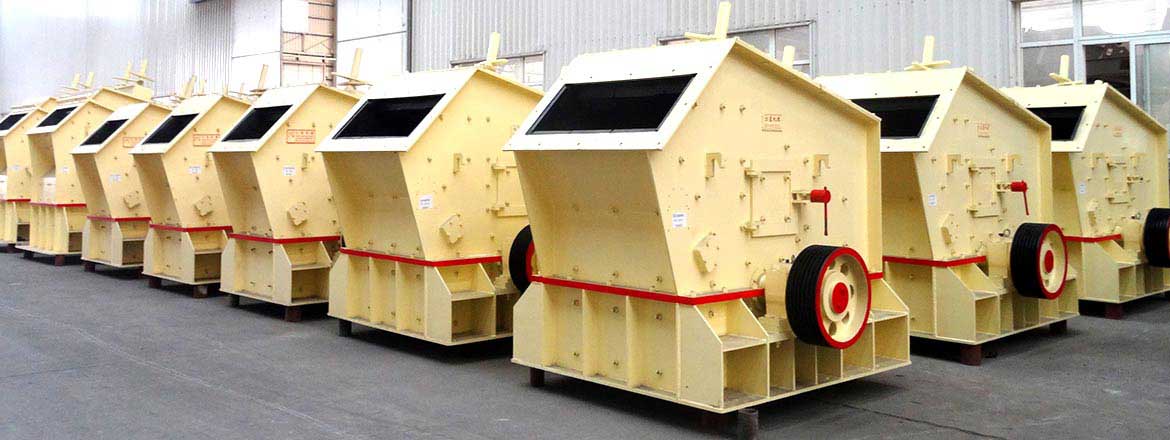

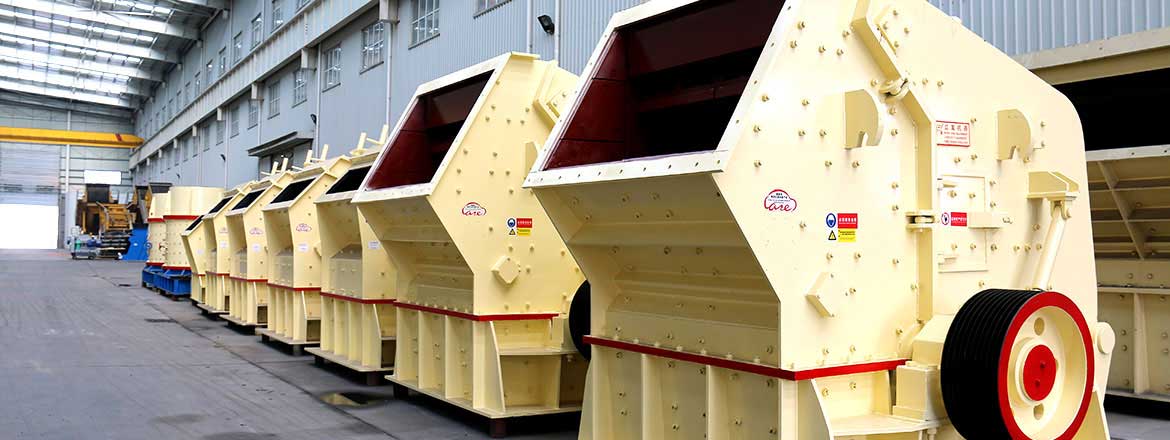

Impact crusher machine

Impact crusher machine, being new and high-efficient, is a kind of sand maker. It is mainly used for crushing medium-hardness materials and offering good sands for industries like railway, road, water conservancy, airport, buildings, cement and metallurgy, etc.

Working principle of Fote impact crusher

Impact crusher machine can only crush raw materials with largest size smaller than 350mm, compressive strength less than 320MPa, water content smaller than 8%.

Animation of Fote impact crusher plant

Remarkable advantages of impactor crusher

1: 1.5 times or even 2 times larger crushing cavity than that of other crushers, large feeding mouth

2: easy adjustment toward distance between plate hammer and impact plate, easy control toward size and shape of finished products

Stone before being crushed and after being crushed by Fote impact crusher

3: large crushing ratio for 30 to 40, even 150

4: suitable for processing materials with maximum compressive strength of 350MPa and length from 100mm to 500mm.

Working site of Fote impact crusher

Parameters type

Model Specification
(mm)
Feed
opening
(mm)
The Maximum
Feeding Size
(mm)
Capacity
(t/h)
Power
(kw)
Overall
dimension
(L×W×H)
(mm)
Total
weight
(t)
PF-1007 Φ1000×700 400×730 300 30-70 4P   37-45 2330×1660×2300 12
PF-1010 Φ1000×1050 400×1080 350 50-90 4P   45-55 2370×1700×2390 15
PF-1210 Φ1250×1050 400×1080 350 70-130 6P   110 2680×2160×2800 17.7
PF-1214 Φ1250×1400 400×1430 350 80-180 6P   132 2650×2460×2800 22.4
PF-1315 Φ1320×1500 860×1520 500 100-280 6P   200 3180×2720×3120 27
PF-1320 Φ1300×2000 993×2000 500 140-380 6P   250 3220×3100×3120 34
PF-1520 Φ1500×2000 830×2040 700 200-550 4P   315-400 3959×3564×3330 50.6
PF-1820 Φ1800×2000 1260×2040 800 400-800 4P   630-710 4400×3866×4009 83.21
