Max. Feeding Size: φ 1.5x15m- 3.3x40m
Capacity:1-200tph
Processing Materials: cement, silicate products, new building materials, refractories, glass, ceramics and other industries.

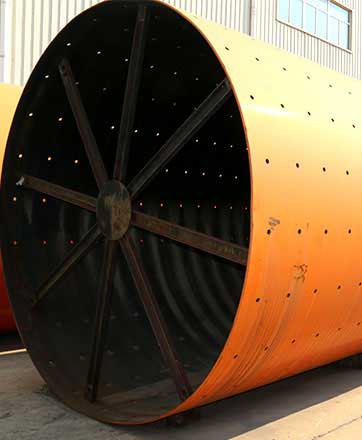

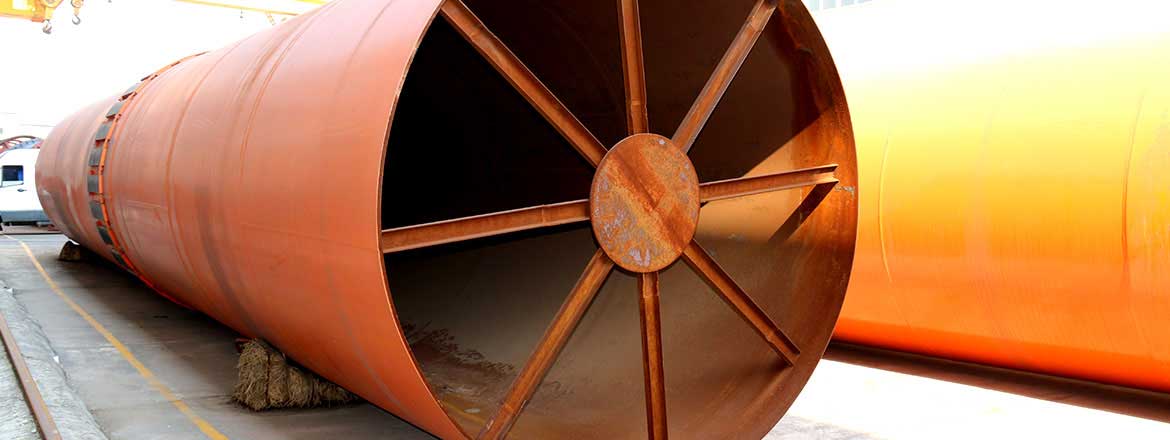

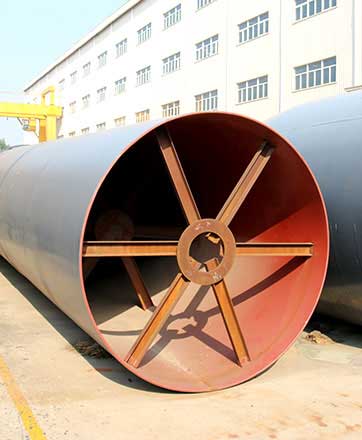

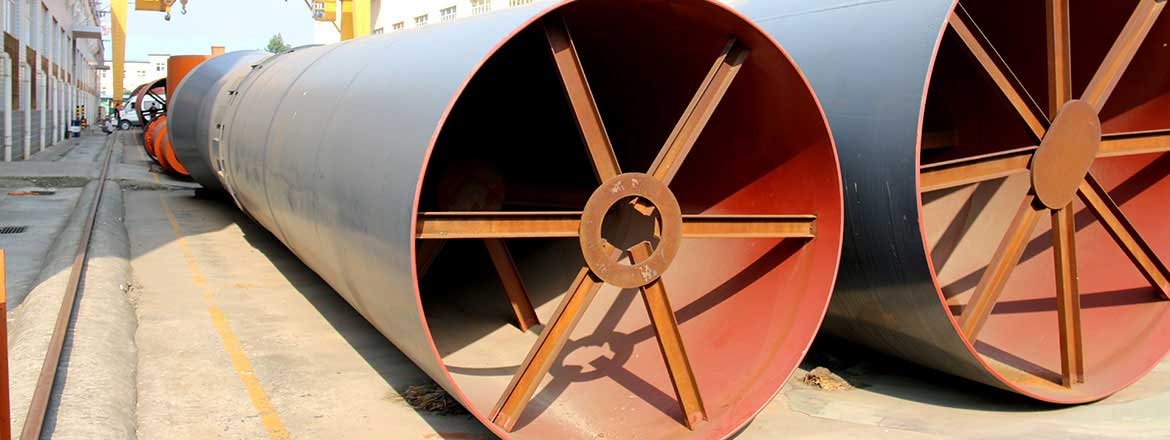

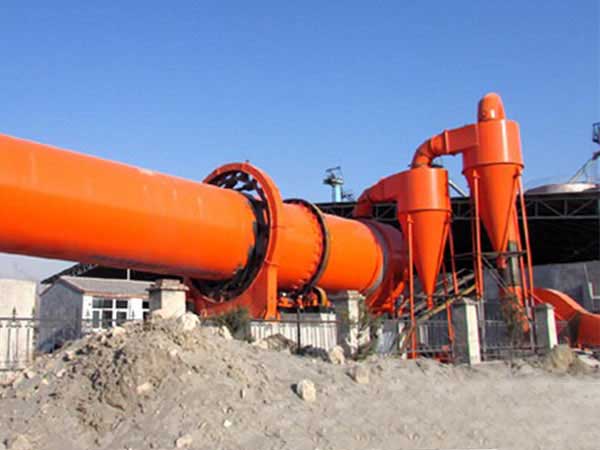

Single cylinder rotary cooler is suitable for cooling clinker out from rotary kiln. Rotary drum cooler can rapidly cool clinker out from rotary kiln from 1000-1300 ℃ to 200 ℃), while absorb large amount thermal energy carrying by high-temperature materials, to preheat the temperature of combustion air to strengthen the calcinations and reduce heat consumption. Single cylinder rotary cooler is an important supplementary equipment of rotary kiln.
Advantage of single cylinder rotary cooler
1. Turning drum of rotary drum cooler drives the clinker (1000-1200℃) out from rotary kiln to exchange heat with air, so as to cool the material to below 200 ℃, while improving the quality and ease of wear of clinker. The air can increase efficiency of the kiln.
2. Single cylinder rotary cooler enjoys a broad range of application, such as dolomite, kaolin, bauxite, cement, limestone, refractory materials, ferrotitanium powder, alum, activated carbon, coke, ore, alumina, magnesium oxide, zinc oxide and other industries.
3. Single cylinder rotary cooler enjoys simple operation, easy to repair and maintenance, and it can be maintained from the side of it, saving time and improving efficiency.
| Model | Feed opening size(mm） | Max.Feeding size (mm) | Adjustment range of discharge port (mm) | Capacity(t/h) | Rotation speed of eccentric shaft(r/min) | Power (kw) | Dimensions（L×W×H） (mm) |
| PE 150×250 | 150×250 | 125 | 10-40 | 1-3 | 268 | 4P 5.5 | 760×700×860 |
| PE 200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 4P 7.5 | 915×780×990 |
| PE 200×350 | 200×350 | 180 | 18-60 | 3-10 | 276 | 4P 11 | 1000×914×1112 |
| PE 250×400 | 250×400 | 210 | 20-70 | 5-21 | 300 | 6P 15 | 1100×1032×1285 |
| PE 400×600 | 400×600 | 340 | 40-100 | 16-64 | 270 | 6P 30 | 1623×1736×1615 |
| PE 500×750 | 500×750 | 425 | 50-100 | 40-110 | 268 | 6P 55 | 1920×1850×1920 |
| PE 600×750 | 600×750 | 500 | 150-200 | 80-240 | 268 | 6P 55 | 2020×1850×1920 |
| PE 600×900 | 600×900 | 500 | 65-160 | 50-160 | 254 | 6P 55 | 2530×1900×2340 |
| PE 750×1060 | 750×1060 | 630 | 80-180 | 110-320 | 245 | 8P 110 | 2680×2380×2785 |
| PE 900×1200 | 900×1200 | 750 | 100-200 | 220-380 | 208 | 8P 110 | 3470×2876×3330 |
| PE1200×1500 | 1200×1500 | 1020 | 150-350 | 400-1000 | 180 | 8P 160-245 | 4850×3220×3680 |
| PE1500×1800 | 1500×1800 | 1200 | 220-350 | 500-1200 | 180 | 8P 280-380 | 5160×3660×4248 |
| PEX 150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 4P 15 | 1170×1575×1030 |
| PEX 250×750 | 250×750 | 210 | 25-60 | 13-35 | 320 | 6P 22 | 1550×1730×1470 |
| PEX 250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 6P 30 | 1580×2006×1390 |
| PEX 250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 6P 37 | 1780×2214×1430 |
| PEX 300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 6P 55 | 2210×2320×1723 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
