Rotary Kiln

Rotary kiln belongs to cement and building materials making equipment, is necessary equipment for cement plant to produce high grade cement.

Specification: φ 2.5x40m- 6.0x95m

Capacity: 180-10,000t/d

Application: building materials, metallurgy, chemical industry, environmental protection industry.

Applicable materials: roasting of refractory cement, metallurgy industry, etc.

Get Pricelist PDF Download (1.02M)
Fill in your email address and click on download.
If you are interested in our products, please email us at market@sinoftm.com.
  • Overview
  • Technical data
  • Send Message

Rotary kiln belongs to cement and building materials making equipment, is necessary equipment for cement plant to produce high grade cement. Cement rotary kiln and lime rotary kiln are widely used in metallurgical, ceramic, chemical, lime, active lime and other industries. Rotary kiln can be classified into cement kiln, metallurgy chemical kiln and lime kiln.

Metallurgy chemical kiln

Metallurgy chemical kiln is mainly used for magnetizing roasting of poor iron ore in metallurgical steel plant; oxidizing roasting of chromium, nickel and iron ore; roasting of high bauxite mining and aluminum plant in refractory factory; roasting clinker and aluminium hydroxide in aluminium plant; roasting chromium ore and other minerals in chemical plant. In nonferrous and ferrous metal, rotary kiln is main equipment for smelting iron, aluminum, copper, zinc, tin, nickel, tungsten and other metals, sintering and roasting ores, concentrates and intermediates.

Active lime kiln

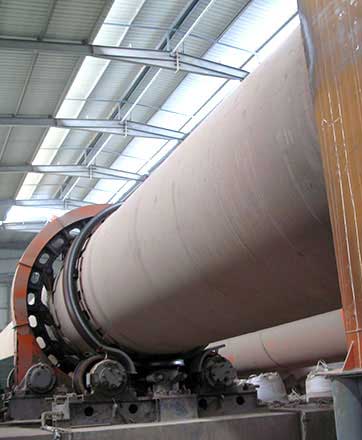

Active lime kiln

Active lime kiln is for roasting quicklime and calcined dolomite in iron and ferroalloy plant.

Cement rotary kiln

Cement rotary kiln is mainly used for roasting cement clinker, including dry type cement kiln and wet type cement kiln. Cement rotary kiln also can be used for roasting clay and limestone and drying slag. In the production of refractory materials, roasting raw material by rotary kiln can increase the strength and dimensional stability.

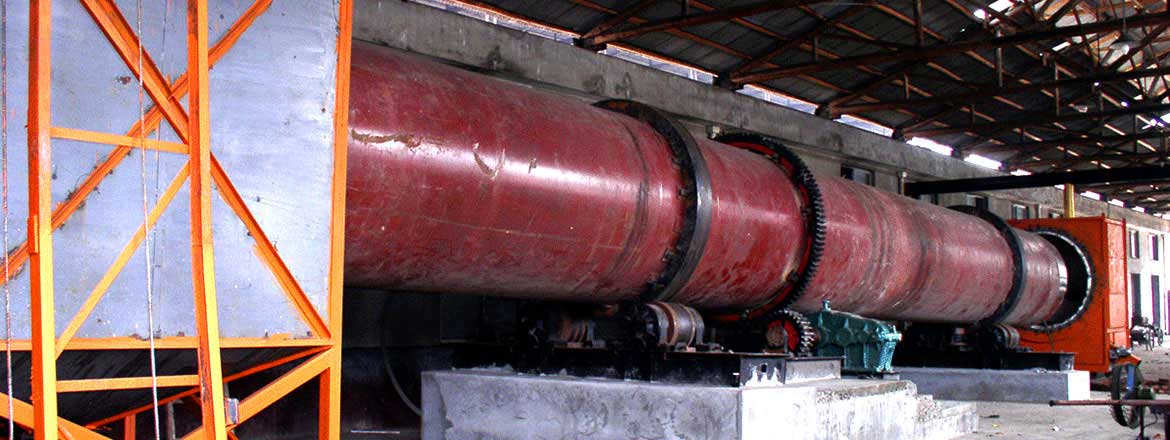

Cement rotary kiln

In the area of environmental protection, firing hazardous waste and garbage with cement kilns not only make waste reduction and detoxification, but also make waste as fuel to save coal.

Welcome to leave message or send email to us for more details and price list.

Parameters type

Product
Specification
(m)
Kiln dimensions Motor
power
(kw)
Total
weight
(t)
note
Diameter
(m)
Length
(m)
Obliquity
(%)
Capacity
(t/d)
Rotation
speed
(r/min)
Φ2.5×40 2.5 40 3.5 180 0.44-2.44 55 149.61

-----

Φ2.5×50 2.5 50 3 200 0.62-1.86 55 187.37 -----
Φ2.5×54 2.5 54 3.5 280 0.48-1.45 55 196.29

outside

disassemble

kiln

Φ2.7×42 2.7 42 3.5 320 0.10-1.52 55 198.5 ------
Φ2.8×44 2.8 44 3.5 450 0.437-2.18 55 201.58

outside

disassemble

kiln

Φ3.0×45 3 45 3.5 500 0.5-2.47 75 210.94 ------
Φ3.0×48 3 48 3.5 700 0.6-3.48 100 237

outside

disassemble

klin

Φ3.0×60 3 60 3 800 0.3-2 100 310 ------
Φ3.2×50 3.5 50 4 1000 0.6-3 125 278

disassemble

klin

Φ3.3×52 3.3 52 3.5 1300 0.266-2.66 125 283

kiln with

preheater

precalcine

Φ3.5×54 3.5 54 3.5 1500 0.55-3.4 220 363

kiln with

prehrater

precalcine

Φ3.6×70 3.6 70 3.5 1800 0.25-1.25 125 419

Generating

klin for

usimg ofterheat

Φ4.0×56 4 56 4 2300 0.41-4.07 315 456

klin with

prehrater

precalcine

Φ4.0×60 4 60 3.5 2500 0.396-3.96 315 510

klin with

prehrater

precalcine

Φ4.2×60 4.2 60 4 2750 0.41-4.07 375 633

klin with

prehrater

precalcine

Φ4.3×60 4.3 60 3.5 3200 0.396-3.96 375 583

klin with

prehrater

precalcine

Φ4.5×66 4.5 66 3.5 4000 0.41-4.1 560 710.4

klin with

prehrater

precalcine

Φ4.7×74 4.7 74 4 4500 0.35-4 630 849

klin with

prehrater

precalcine

Φ4.8×74 4.8 74 4 5000 0.396-3.96 630 899

klin with

prehrater

precalcine

Φ5.0×74 5 74 4 6000 0.35-4 710 944

klin with

prehrater

precalcine

Φ5.6×87 5.6 87 4 8000 Max4.23 800 1265

klin with

prehrater

precalcine

Φ6.0×95 6 95 4 10000 Max5 950×2 1659

klin with

prehrater

precalcine
