Sand Washing Machine
Sand Washing Machine

Sand Washing Machine

High Efficiency, Energy-saving, Even Output

Max. Feeding Size: 2,200-3,500mm

Capacity:5-2200tph

Processing Materials: cobble, limestone, granite, quartz sand, natural sand, mechanical sand and river sand, etc..

  • River Gravel
  • Coal Fluorite
  • Steatite
  • Furnace Slag
  • Quartz
Get Pricelist
If you are interested in our products, please email us at market@sinoftm.com.

General introduction to sand washing machine

Sand washing machine is a kind of high-efficient machine, which is produced by Fote according to the actual situations of sand industry around the world.

Working site of Fote sand washing machine

Fote sand washing plant can be used to clean the crushed ores, sands and stones. Besides, the sand washing equipment can wash out materials. The sand washer has its features of simple structure, smooth operation, high cleanness, reasonable structure, large output and low failure rate.

sand washing machine

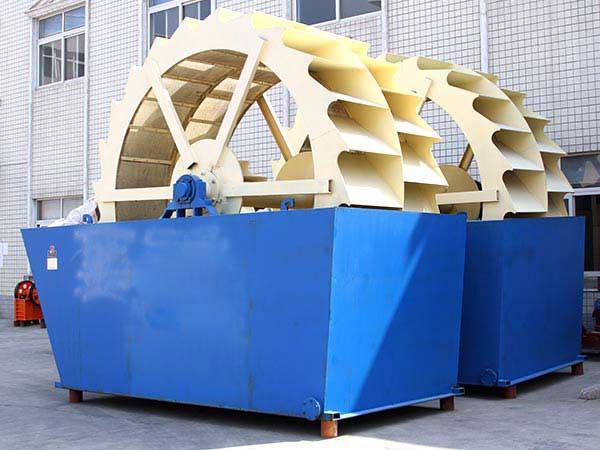

Fote sand washing machine

How Fote sand washer works?

Sand materials are fed into the washing tank through feeder and hit each other under the work of impeller. During the hitting process, foreign matters on sand surface can be removed. Meanwhile, the water layer for covering sand is damaged and this is good for dehydration. Next, a lot of water is injected and timely brings away the foreign matters.

How Fote sand washer works

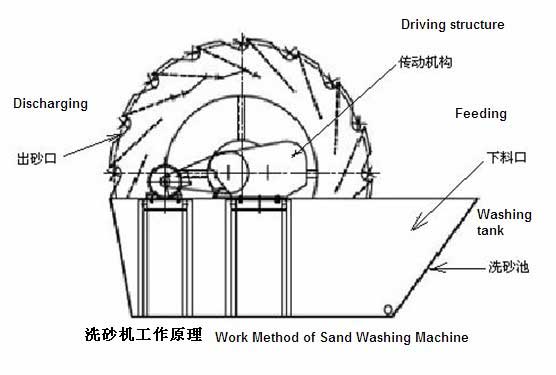

Structure chart of Fote sand washing machine

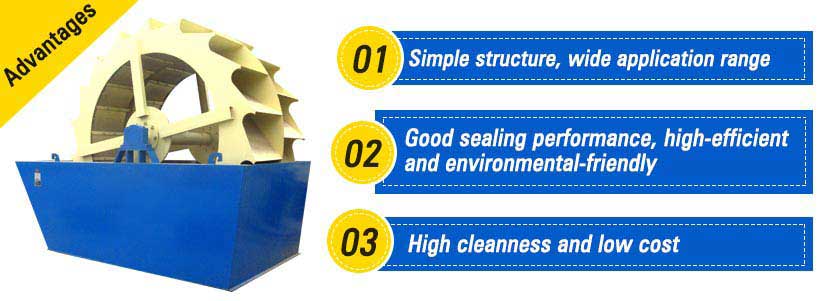

Advantages of Fote sand washing equipment

1: Simple structure, wide application range

Since the bearings are protected from touching water, they can’t be rusted or damaged by water, sand or pollutants. Therefore, sand washing machine is suitable for any working environment.

Advantages of Fote sand washing equipment

2: Good sealing performance, high-efficient and environmental-friendly

Plus with the good structure and effective sealing, sand washing machine is quite durable. The water and power consumption is low, as well as the working noise.

3: High cleanness and low cost:

sand washing machine has three roles: cleaning work, dehydrating work and grading work. These roles can work at the same time. So, it is quite beneficial for only using one machine for finishing so many works.
By virtue of the innovative sealing structure, enclosed transmission, and adjustable weir wall, sand washer is very high-efficient, durable and environmental-friendly.

Technical Parameters

Specification Processing Capacity(t/h) Motor Power
(kw)
2208 15-40 8p 4kw
2611 20-65 8p 5.5kw
2914 50-100 8p 7.5kw
3020 80-200 8p 11kw
3121 90-260 8p 11KW
